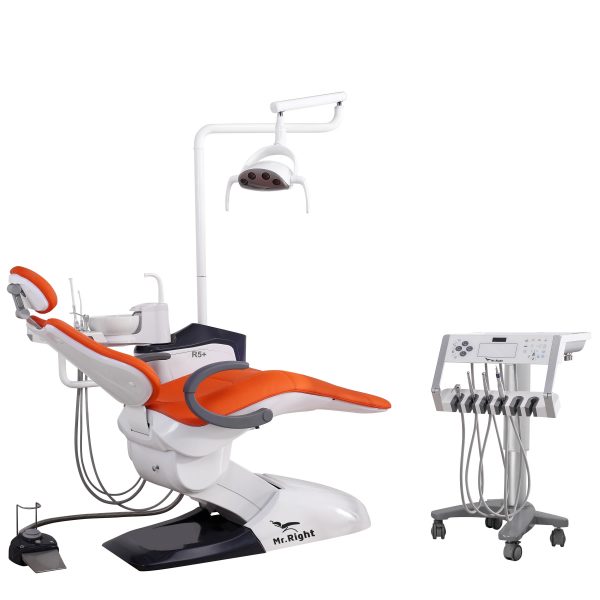

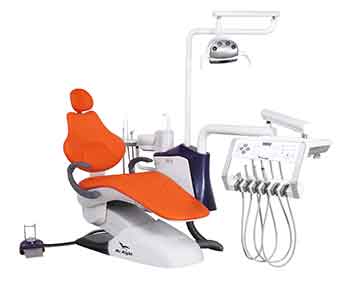

R5 DENTAL CHAIR WITH OPERATING UNIT, BUILT FOR PREMIUM COMFORT AND GREAT ERGONOMIC ACCESS.
- Reviews (0)
- STANDARD CONFIGURATION
- Service Life And Warranty
One unit, 3 different versions.
The dentist’s element is available with up mounted Instrument tray version, Cart version and Chair-Side version.
Easy touch control panel
No unnecessary control buttons or complicated menus. The control panel shows only those functions that you need at any given time. The symbols are self-explanatory and dedicated keys are assigned to the functions that you use most frequently. In other words, you can navigate at a single glance without having to interrupt your accustomed treatment routines.
Preset Chair Position Key
Other Wonderful Design
LED Operating Light
Three-axis, provides unlimited positioning.
Flexible light intensity settings.
You can aslo control the dental light on/off using the control panel or foot control.
Suction System for Saliva Ejector
There are three kinds of suction system for saliva ejector in dental chair.
Clear Intraoral Images(optional)
Comfortable Microfiber Leather upholstery
The comfortable imitation leather upholstery provides exceptional patient comfort. The soft and dynamic design surface increases comfort, shows style and allows for a relaxed treatment atmosphere merely through its appearance and texture.
Thin backrest for ideal freedom of leg movement, flexible positioning of the foot control.
Easy Adjustable Headrest
Your can sdjust the articulating headrest easily with one hand by depressing the Quick Release Button and situating the headrest in the desired position. Release the button to lock headrest into place.

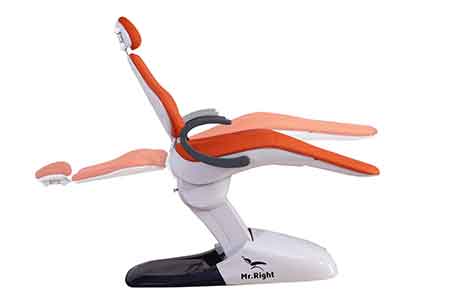

Comfortable Patient Positioning
1.Quick adjustment: Only 9 seconds for backrest to move from the lowest position to the highest position.
2.Synchronized movement of seat and backrest, which keeps the patient from having to readjust when the chair is lowered or raised.
Other Wonderful Design
Detachable Hygiene-critical Compoments
The hygiene-critical components can be detached for the purpose of cleaning/thermal disinfection and sterilization. The smooth surfaces are easy to clean on a daily basis.
Top Brand Component
All the main components using inside Mr.Right dental chair are from world’s famous brand name, which insure Mr.Right dental chair super high quality, reliable for years.
Strong and Stable Chair Frame
All frame compoinents get through special rust proofed treatment for long time usage，all the moving parts are connected by oil seal bearings for silence and stale chair movement. Weight capacity up to 300kg.
Chair Upholstery Colour
Microfiber Leather Colour Sheet
Upgrade Microfiber Leather Colour Sheet
High&Low Speed handpiece Kit (TR300)
Dental Handpiece Set Medical Handpeice Kit-Two PCS High Speed Handpiece and One PC Low Speed Handpiece
Fiber Optic High Speed Handpiece With Quick Coupling (SUN-LC4-KP9000)
Fiber Optic High Speed Handpiece With Quick Coupling, Compatible With KAVO 4/6 Hole Fiber Optic Quick Coupling
Build-in LED Curling light (LED.Q)
Woodpecker Built-in Dental Curing Light LED.Q
Build-in Sclaer(UDS-N2 LED)
UDS-N2(LED) LED Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Build-in Sclaer (UDS-N2)
UDS-N2 Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Suction Machine (TR-YP606A1)
Dental Suction Machine Vacuum System Support 1 Or 2 Or 3 PCS Dental Chair
Air compressor (TR-1EW-32)
Noiseless Oil Free Dental Air Compressor Support 1 PCS Dental Chair 32L，545W
MODERN® Brushless Electric LED Motor Drive Control, ISO E Type Connection, Inner Water Spray,Speed Range From 100-200,000RPM
Endoscope System (MD-1500A)
Build In Webcam 15 Inch Wired MD1500A Dental Intraoral Camera System LCD Monitor With holder,8GB U disk
● Doctor touch control operation panel● 135°rotatable inclined type big rack● 3 pieces 4 holes handpiece tubing● Liquid crystal display● 3 ways syringe● Built-in DC 24V X-Ray film viewer● Air-controlled balance arm● Handpiece tubing disinfection● 3 doctors, 9 memory position
● Water botlle supply system● 180°rotatable, can quick disassembling to disinfection, ceramic spittoon● High-capacity automatic constant temperature heating system● Strong air suction system● Strong water suction system● Air vacuum muffling system● Saliva ejector filter device● Handpiece tubings disinfection● Intelligent spittoon disinfection
● Emergency stop control device● Low noise electric-controlled dental unit● 3 in 1 switch for water, air, electricity● Interlock system● Emergency position● Clear up chair position after surgery● Creative fiber leather cushion conforms to ergonomics● Synchronized chair design● Full tubing hot water function● Only needs 9s for backrest from highest point to lowest point, 9 memory program,spit restoration● Doctor-patient communication function
● LED operating light
● Dentist stool
● Assistant tray● Assistant operation panel● 3 ways syringe● Detachable weak suction connector● Detachable strong suction connector
SPECIFICATIONSPower Voltage: AC220V-230V,50HZ/110VWater Pressure: 0.20-0.40Mpa/2.0-4.0barAir Pressure: 0.55-0.80Mpa/5.5-8.0barOutput: ≥55L/min(water vacuum),≥120L/min(air vacuum
|Product Category||Service Life (years)|
|All Mr.right Dental Chairs, Operator and Assistant Stools, Dental Lights, Delivery Systems, Support Systems, Monitor Mounts, Dental Furniture, and related components except components listed separately below||8|
ScopeMr.right warrants all goods listed below against defects in material or workmanship under normal intended use when purchased from Mr.right or an authorized Mr.right dealer. Mr.right’s sole obligation under the warranty is to provide parts for the repair, or replacement of any defective component with one that is equivalent to the original in performance. This warranty is in lieu of all other warranties or obligations express or implied. Mr.right expressly disclaims all implied warranties of merchant ability or fitness for a particular purpose. In no event will Mr.right be liable for indirect, special, incidental, exemplary, or consequential damages of any kind.The repair or replacement of components is contingent upon Mr.right’s styles and color options available at the time of the warranty claim. If a warranty claim is filed after a product or color has been discontinued, Mr.right reserves the right to honor the warranty in one of the following ways:
- Replace the affected component with a new component in the same style and/or color.
- Replace the affected component, and other product components in the operatorwith a product style and/or color similar to the originally purchased style and/or color.
PeriodThe warranty period, measured from the date of delivery, shall be as follows:
|Electric Dental Chair Motor(tilt and lift)||5 years|
|Dental Chair Frame||5 years|
|Operator and Assistant Stools, Dental Lights, Delivery Systems, Monitor Mounts, Dental Furniture, and related components||2 years|
ExclusionsThe warranty does not cover:
- Damage resulting from improper installation or maintenance, accident, misuse, abuse, neglect, alterations, freight damage, or natural disaster.
- Damage resulting from the use of chemicals and process forcleaning, disinfecting, or sterilization.
- Normal service items such as (but not limited to): light shields, light bulbs, filters, O-rings, handpiece tubing, and water cartridges. Also, normal wear and tear is not covered.
- Consumable products held beyond the expiration date shown on thepackaging.
- All other products, not manufactured by Mr.right, including OEM, follow the original manufacturer’s warranty, and are not covered by Mr.right’s warranty. Examples include, but not limited to: sterilizers, maintenance equipment, cameras, curing lights, ultrasonic, control modules, electric motors, attachments, handpieces, and turbines. Please contact Mr.right Customer Service for specific warranty information.
